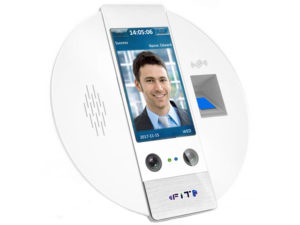

FIT Face Recognition Machine

Face Recognition Time and Attendance Access Control System / Machine

Model Number: “CC-F1500A-W”

Technical Specifications:

Processor	G70 800MHz
User Capacity	1,500 Users
Record Capacity	150,000 Access Control Records
Recognition Algorithm	Dual Sensor™ V2.0
Sensor	Specialized double sensor
Verification Method	Facial Recognition, RFID,Passcode
Verification Speed	Less than 1 Second
Keyboard	4*7 Touch Keypad
LCD	4.3 inch TFT Color Screen, 65,000 Bright Color, 320*240 Resolution
Communication Method	Standard TCP/IP, WiFi
Power	12V DC, Working Current 1Amp
Environment Light	0-5000Lux
Working Distance	30-80cm
Working Temperature	0° - 50°
Working Humidity	10% - 80%
Size	200* 95* 115
Weight	505g
Installation Method	Wall Mounting
Security Image Capacity	4GB SD Card, 70,000 images
Card Recognition	EM or Mifare card
Security Alarm	Tamper Alarm
Output for Access Control System	Standard Wiegand 26/34 output, Built-in relay
U-Disk	Supported
FAR	<=0.0001%
FRR	<=1% Operating
Language	English
Environment	Out Door/In Door
Display	3.4 inch Capacitive Touch screen

Features:

Embedded Facial Recognition System:

► Adopt US advanced DSP technology keeps processing and matching right on the device.
► Standalone application as time attendance. Access control, user identification.

Accurate and Fast Identification:

► Industrial Leading “Dual Sensor™” Facial Recognition Algorithm, FAR<0.0001%.
► 1:Many up to 1400 users less than 1 second.

High Usability and Security:

► Failure to enroll and acquire rate is less than 0.0001%.
► Incident trackable for security with photo.

Large User and Log Capacity:

► User capacity from 500 to 1400.
► Over 150,000 logs and optional image capacity over 70,000.

Reliable Performance Under Different Environments:

► Different source-light Technology.
► The system can work in different light condition even in the dark.
► Over one year Chinese market testing.

Flexible I/O Interfaces:

► Internet Protocol-based enables LAN or Network Deployment.
► USB Host for User data uploads or download via USB flash driver.
► Wiegand output makes system compatible with different access control panel.

User-Friendly Design:

► 3.5-inch colour screen for face positioning.
► contactless authentication for the ultimate in hygienic.
► voice prompt.

Other Functionalities:

► Multi-authentication methods that able to work with Facial, RFID Cards, Cards+Facial.
► Low power consumption,12Watts in operation, less than 5Watts in resting mode.
